Hardware error displayed in Primus

Hardware error displayed in Primus

1. Run hardware diagnostic test

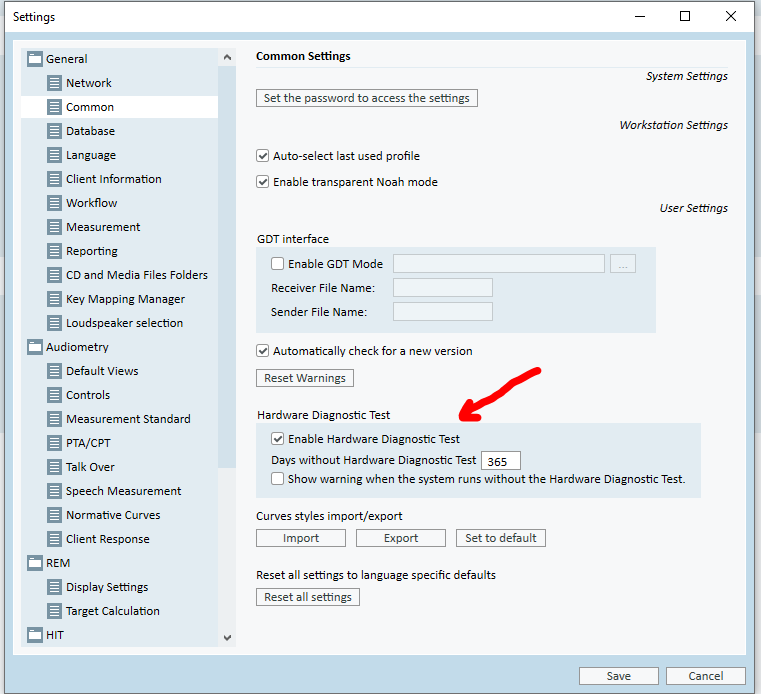

  1. Enable Hardware Diagnostic Test in Tools > Settings > General > Common



  1. Start the test under Tools > Hardware Diagnostic Test

  1. Select the device (Measurement or Hearing Instrument), all needed parameters, and press Start test

  1. If the test result is OK, you see the status Passed. If the test fails, you see the status Please check

WarningYou must unplug all transducers to run the test, otherwise you will receive an error message
WarningPrimus Hardware Diagnostic Test won’t run if the unit is not shown as connected in the software


2. Do hardware reset

  1. Disconnect all transducers, accessories and cables from the Instrument

  1. Find a small hole on the backside (for Primus/Unity) or frontside (Measure) of the board.

  1. Insert a paperclip into the hole and wait until it clicks lightly.

  1. Hold the clip for two seconds and then connect the USB cable without removing the pin

  1. Wait until the Instrument blinks a few times.

  1. Remove the clip and restart the software.


3. Send log files to Support

If none of the solutions works, locate the Primus log files under C:\ProgramData\Real Ear\Primus:

  1. Hardware: HWCommands.log

  1. Software: log-file.xml



Send the files to the Primus support team for further troubleshooting.
