Pairing the Wireless REM Probe with the Measure Audiometer

Pairing the Wireless REM Probe with the Measure Audiometer

Reference to Video - How to Connect the Wireless REM Probe to the Measure Audiometer


Brief overview:
The power switch is located on the left side (L) of the REM Probe.

The pairing button is located on the right side (R) of the REM Probe.

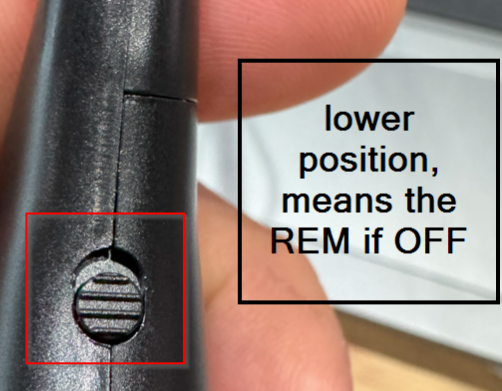

Position of the switch when turned OFF:

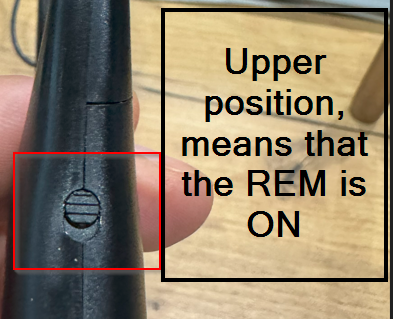

Position of the switch when turned ON:



Preliminary Checks

  1. Open Measure Software on your PC.

  2. Check the Serial Number of the board must start with 331, not 330 and confirm the license includes Wireless REM functionality for the specific unit.

  3. Ensure Measure version 6.2.X or higher is installed.

Setup & Connection

  1. Connect the Fitting Unit to:

A power source

Your PC via USB

2. Ensure no other Wireless REM devices are currently connected to the fitting unit.

Activate “Ready to Pair” Mode on the Wireless REM

1. Push the power switch up to the ON position if it was off.

  1. Press and hold the pairing button for several seconds. This will deactivate the device and put it into sleep mode.

  2. While still holding the pairing button, connect the Wireless REM to either:

The charging cable or the charging stand.

  1. The indicator light will start blinking blue rapidly to indicate “ready to pair” mode.

In this state, the Wireless REM will automatically pair with the nearest fitting unit.

  1. The indicator will change from blinking blue to solid green once pairing is successful.

  2. In the Measure software, verify that the REM probe is listed as the active device.




For any additional help, please don’t hesitate to reach out to support@auditdata.com
